Colour (Sound) Organ

Anyone who has been to a night club, concert or school dance has probobly seen a colour organ. Colour organs cause lights to blink and flash to music from your TV, stereo, guitar and even your own voice. The colour organ presented here needs no connection to the sound source, it picks up sound from its built in microphone.

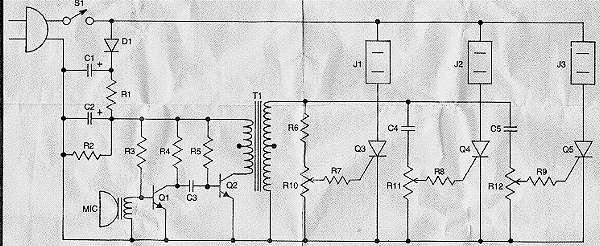

Schematic This is the schematic of the Colour Organ

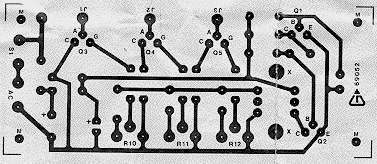

PC board layout

This is the printed circuit layout of the Colour Organ

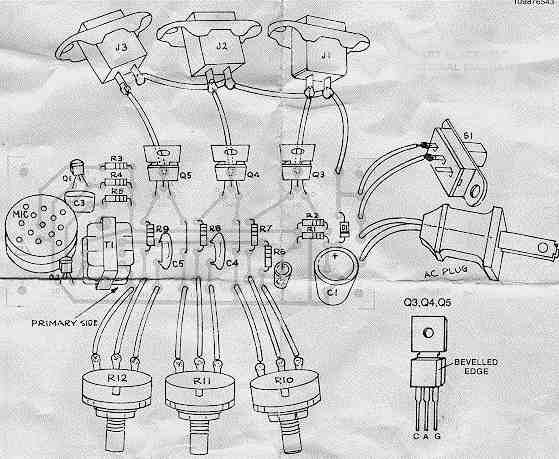

Parts Placement

This is the parts placement of the Colour Organ

Parts:

C1____________22uf 250V Electrolytic Capacitor
C2____________22uf 250V Electrolytic Capacitor
C3____________.1uf Disc Capacitor
C4____________.01uf Disc Capacitor
C5____________.0047uf Disc Capacitor
R1____________47k 1/2 W Resistor
R2,R4_________6.8k 1/2 W Resistor
R3,R5_________1M 1/2 W Resistor
R6____________3.3k 1/2 W Resistor
R7,R8,R9______1k 1/2 W Resistor
R10,R11,R12___10K Pot
D1____________1N4004 Diode
Q1,Q2_________2N3904 NPN Transistor
Q3,Q4,Q5______106B1 SCR
T1____________Audio Transformer, 10k:600 Ohms
S1____________SPDT Slide Switch
J1,J2,J3________AC Socket
MISC__________AC Line Cord, Crystal Microphone, Case, Wire.

Notes:

1. R10, R11 and R12 control the response of the different lights.

2. The circuit can handle up to 300 watts per channel.

3. This circuit is NOT isolated from the 115 Volt line. If it is used with the case opened or not installed in a case, you could recieve a bad shock or be killed.

4. You can also use the Teccor S2003LS1 SCR for SCR1. These give better sensitivity and brightness than the 106B1 units.
